Goal: |
Opens a window with an overview of the block diagram components. |
 |
|

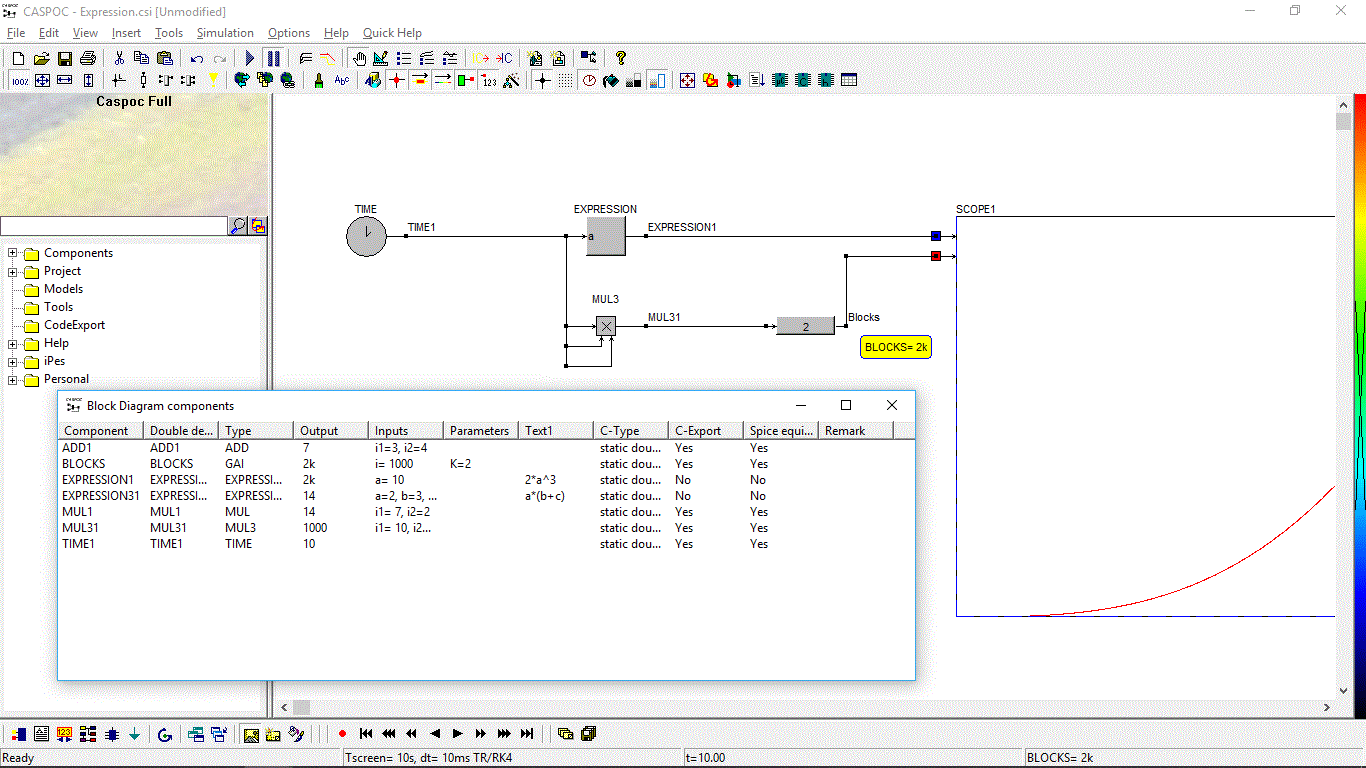

| What to do: | Select View/Components Blocks to open the window with the overview. |
| Result: | Overview of all block diagram componentents in the schematic. |
Note: |
Components inside library blocks are not displayed in the overview. |
