Goal: |

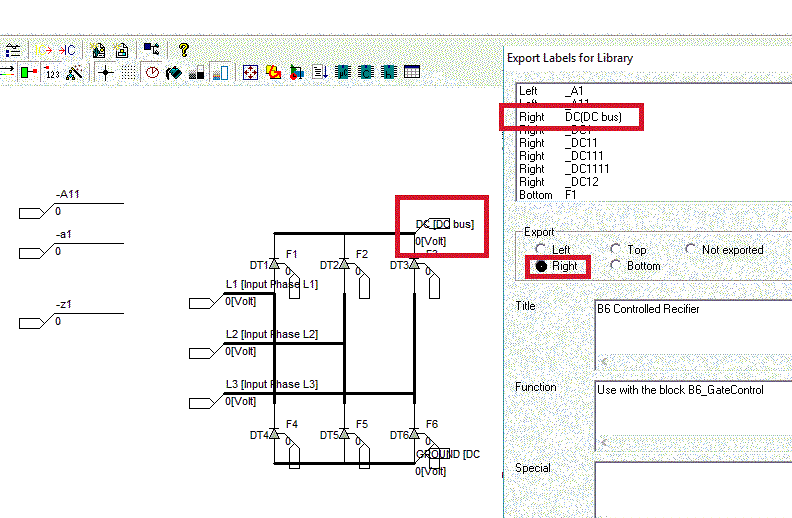

Export the selection in the schematic to one single library block. |
 |
|
| What to do: |
|
| Result: | The selected schematic is exported in one library (*.lib) file. |
Note: |
Wires should connect all equal labels in the library block. Nodes, which have an equal label but are not connected by a wire, are not connected.Do not save the library block with the (*.csi) extension, because you will loose the information on the exported labels! |
