Goal: |

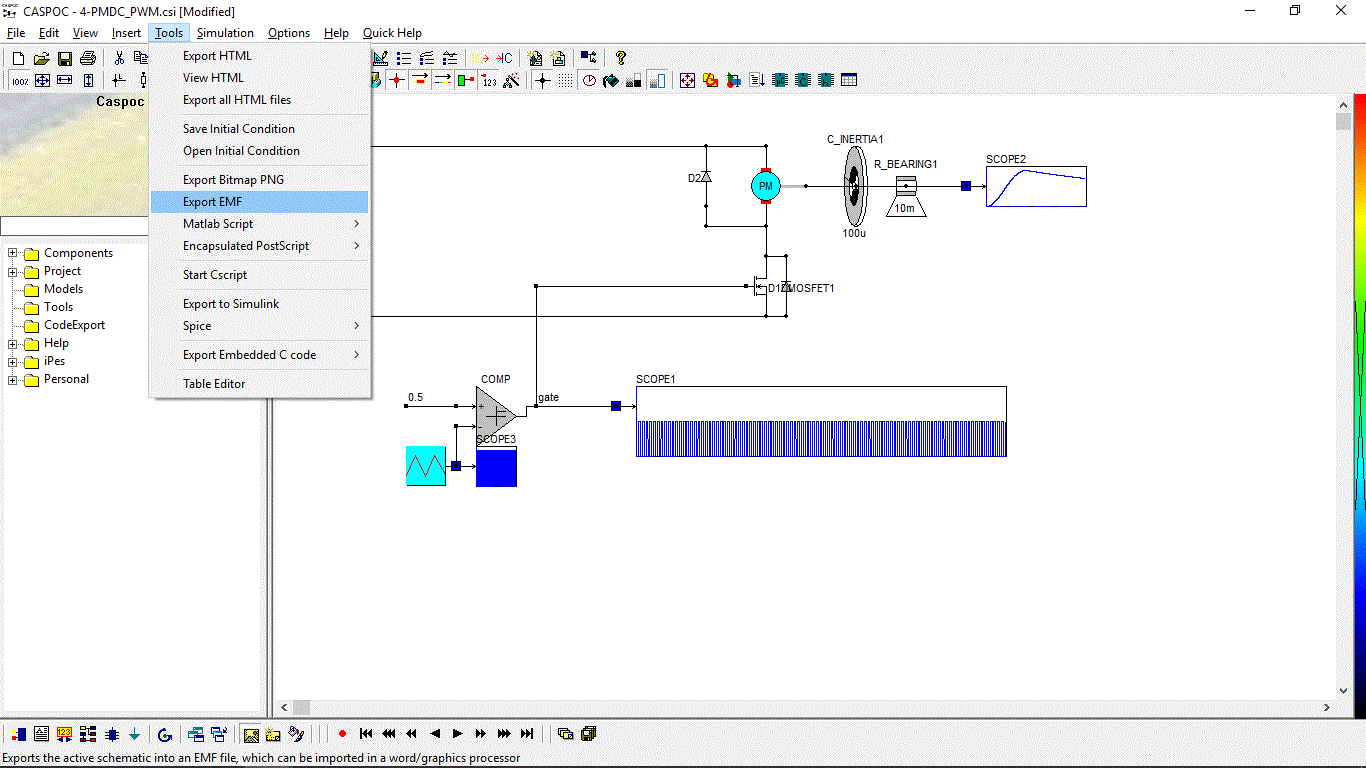

Export the schematic into an EMF (Enhanced Meta File), which can be imported into any text processor or drawing program. |
 |
|
| What to do: | Selecting: |
| Result: | The graphics of the schematic are stored in an EMF file on disk. |
Note: |
Use the extension .EMF for EMF files. Since EMF is a vector-graphics format, the quality is much better than a bitmap created by PRINT SCREEN. |
