Autoscaling



Goal:

Change the scale to fit the simulation results.

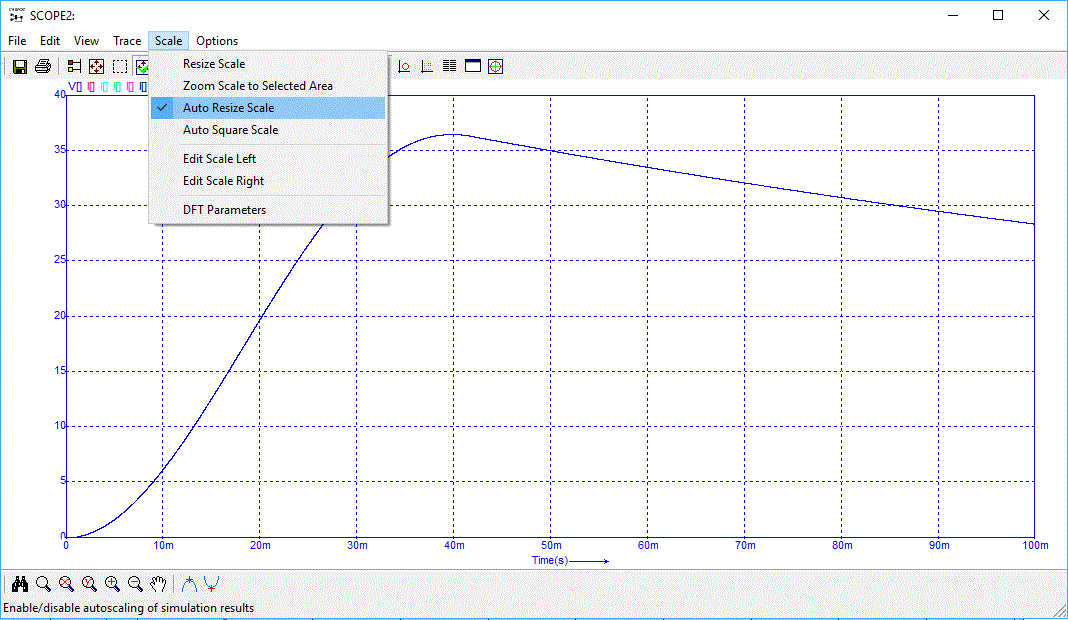

What to do: For auto scaling, the menu item Scale/Auto Resize Scale has to be checked. Select the rescale-button to re-scale the scope window. Also resizing the window re-scales the scope window.
Result: The simulation results always fit within the scope window.

Note:

At the end of the screen, when t is an integer multiple of Tscreen, the scope window is re-scaled automatically.During the simulation, the simulation results can go beyond the specified scale. Select the rescale-button to auto scale during the simulation.Auto scaling is also performed whenever you continue the simulation, for example, by just pressing the [ENTER] key.
