Conductor Geometry
Nominal conductor diameterd13.4[mm]
Nominal conductor cross sectionnccs140.935[mm2]
Geometric Mean RadiusGMR5.6[mm]
Geometric Mean DiameterGMD14.2[mm]

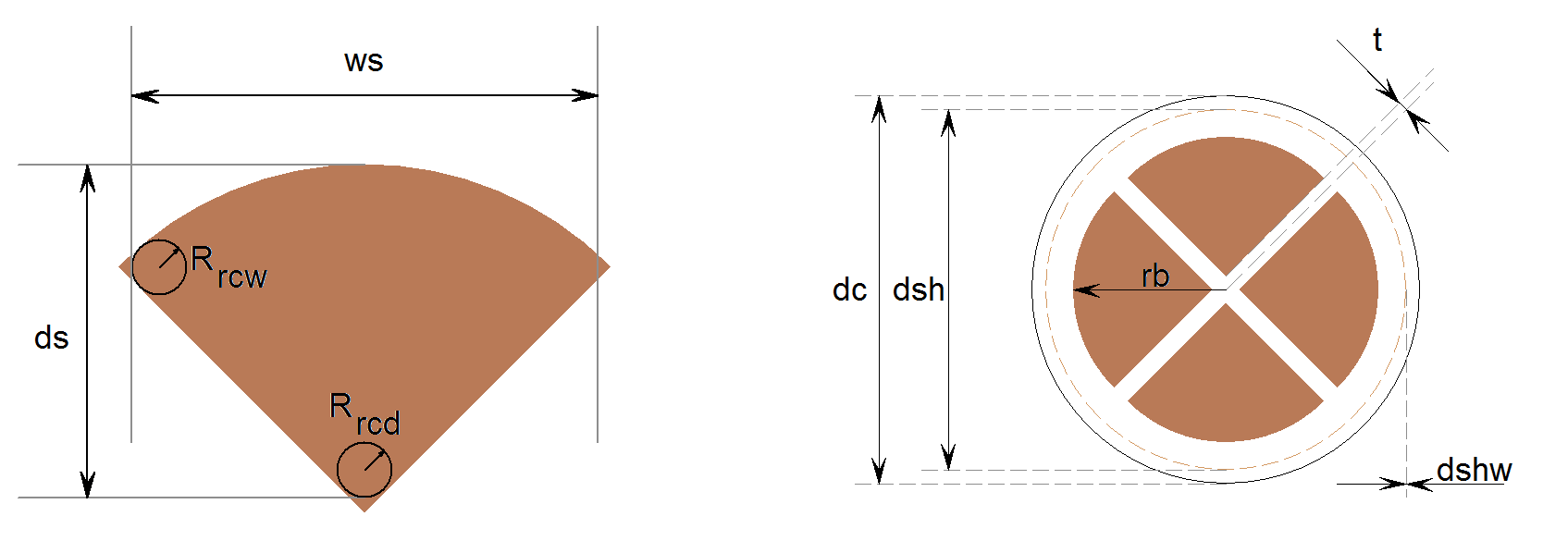

Sector heightds12.6[mm]
Sector widthws16.1[mm]
Conductor Resistance
Resistance copper wireRCU126.5[mΩ/km]
Resistance Aluminium wireRAL200.2[mΩ/km]
Conductor Inductance
Self-InductanceLc1087.6[μH/km]
Mutual-InductanceLmc901.3[μH/km]
Mutual-Inductance diagonalLm2c831.8[μH/km]
Cable-Inductance(Given in datasheet)Lcable186.3[μH/km]
ImpedanceZc58.516[mOhm/km]
Conductor Capacitance
Capacitance conductor-conductorCm97.4[nF/km]
Capacitance conductor-sheathC0150.2[nF/km]
Effective Capacity to Neutral(Given in datasheet)Ctot283[nF/km]
Sheath Resistance
Resistance sheathRsheath343.4[mΩ/km]
Sheath Inductance
Self-InductanceLsh932.8[μH/km]
Mutual-Inductance Conductor-SheathLmsh748[μH/km]
Auxiliary Conductor
Resistance copper wireRauxCU2972.5[mΩ/km]
Self-Inductance auxiliaryLaux1416.8[μH/km]
Mutual-Inductance auxiliary-coreLmaux937.5[μH/km]
Mutual-Inductance aux-auxMaux138.6[μH/km]
Aux-core CapacitanceCaux-core66.118[nF/km]
Aux-sheath CapacitanceCaux-sheath78.518[nF/km]
Coupling factors
Coupling Core-Corekcc0.829
Coupling Core-Core diagonalkccd0.765
Coupling Core-Sheathkcsh0.743
Coupling Core-Auxkca0.755
Coupling Aux-Auxkaa0.098
Coupling Aux-Sheethkash0.651
datasheet
CombiCable
