DC grid education

1. 9:00 - 9:50

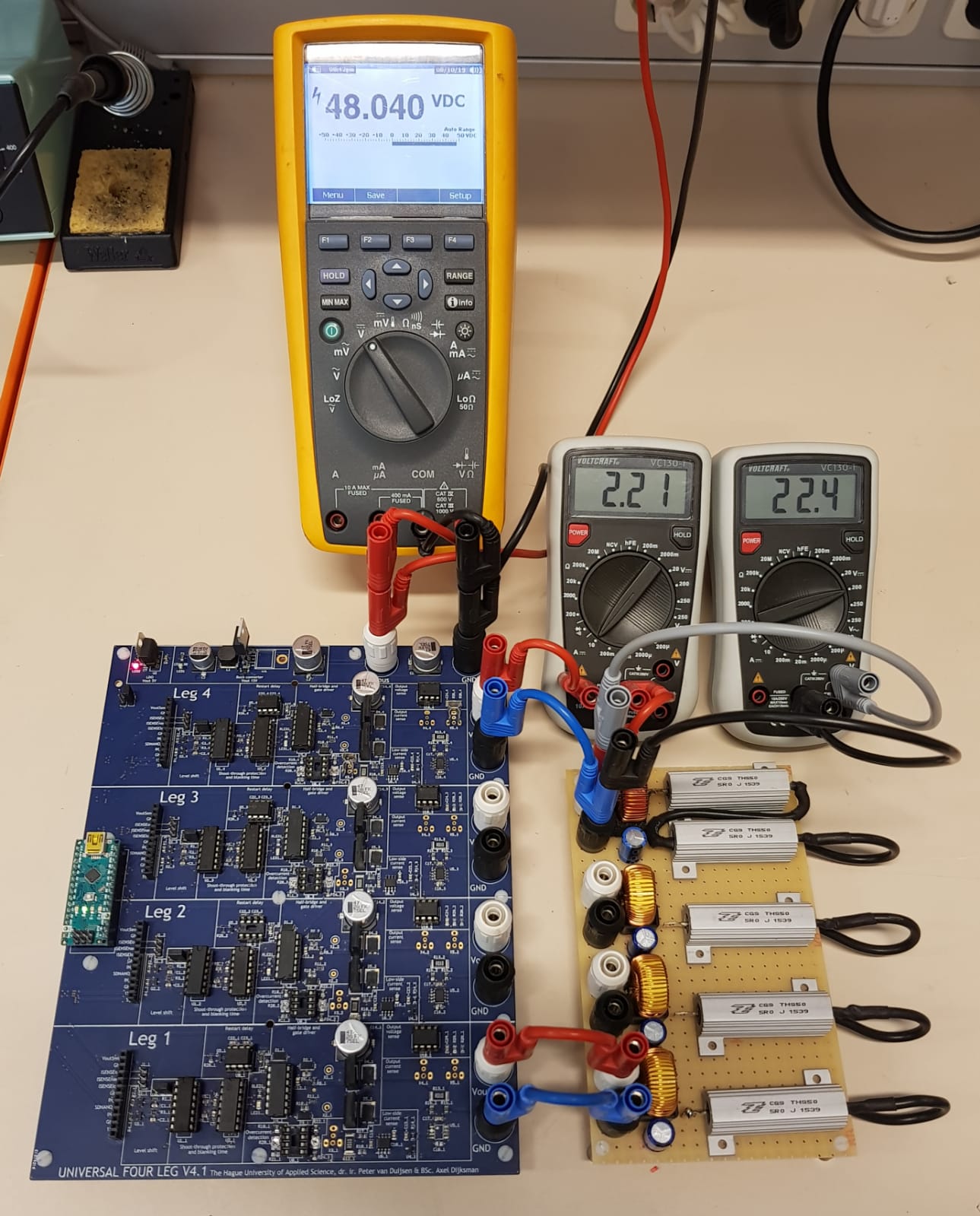

   Introduction U4L and Droop control in DC grid
2. 10:00 - 10:50
   Exercise Droop Control for DC grids, 9 volt batteries and resistors
3. 11:00 - 12:00
   Introduction Power Electronics


4. 12:00 - 13:00
   Lunch break


5. 13:00 - 13:50
   Solar Cell and Battery characteristics
6. 14:00 - 15:00
   Exercise Droop Control for DC grids, solar power and storage
7. 15:00 - 15:30
   Discussion & Questions

Droop Control;

• Presentation Droop Control
• Presentation Grid Manager Structure


• Presentation Battery
• Presentation Solar
• Solar Characteristic Series/Parallel
• Solar Characteristic internal resistance


• Buck Converter
• Boost Converter
• Flyback Converter
• Bidirectional Converter
• Dual Active Bridge


• Tool DC


• Online Caspoc Simulation
