Dynamic Analysis of Mechanical Systems

Click to close the image Click to close the image

NEW! Import your CAD model directly from Solid Works

Click to close the image

The EULER software is a high engineering technology for dynamic analysis of mechanical systems developed by a Russian company named AutoMechanics, Inc. If you use EULER you do not need to derive motion equations and to write programs. You can just draw a mechanical system on the computer screen, indicate the joints and force elements. Besides, you set up the properties of these connections and describe the influence of the medium. The interface is friendly both for engineers and skilled users of such applications.

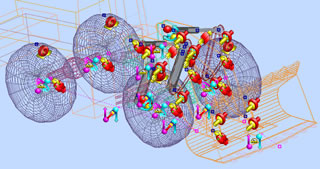

3D model in Euler

It's easy to use!

After setting up your model, you press the [Start] button and the system begins to move on the screen according to the laws of mechanics.

Click to close the image

You can observe accelerations, speed, spacing intervals, angles and forces in the system during motion. These properties can be displayed as values, tables, plots or vectors. EULER software solves the tasks set in 3D space using general non-linear problem statement; non-linear properties are considered for all properties of the mechanical system.

EULER can be used in design, adjustment, testing and operational development of various devices in different areas of engineering, and also in scientific and applied researches.

3D model in Euler
