Replay

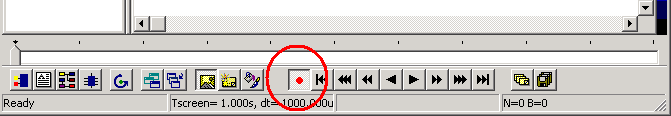

To study what is happening during the simulation, Caspoc has a Freeze and Go Back feature called Replay. It works like a video recorder and you can use it to replay the simulation results at any point in time. Simulation results can be replayed if the replay button is enabled during the simulation:

<br>Click to close the image

When the simulation is finished, you can replay the simulation results by moving the trackbar.

<br>Click to close the image

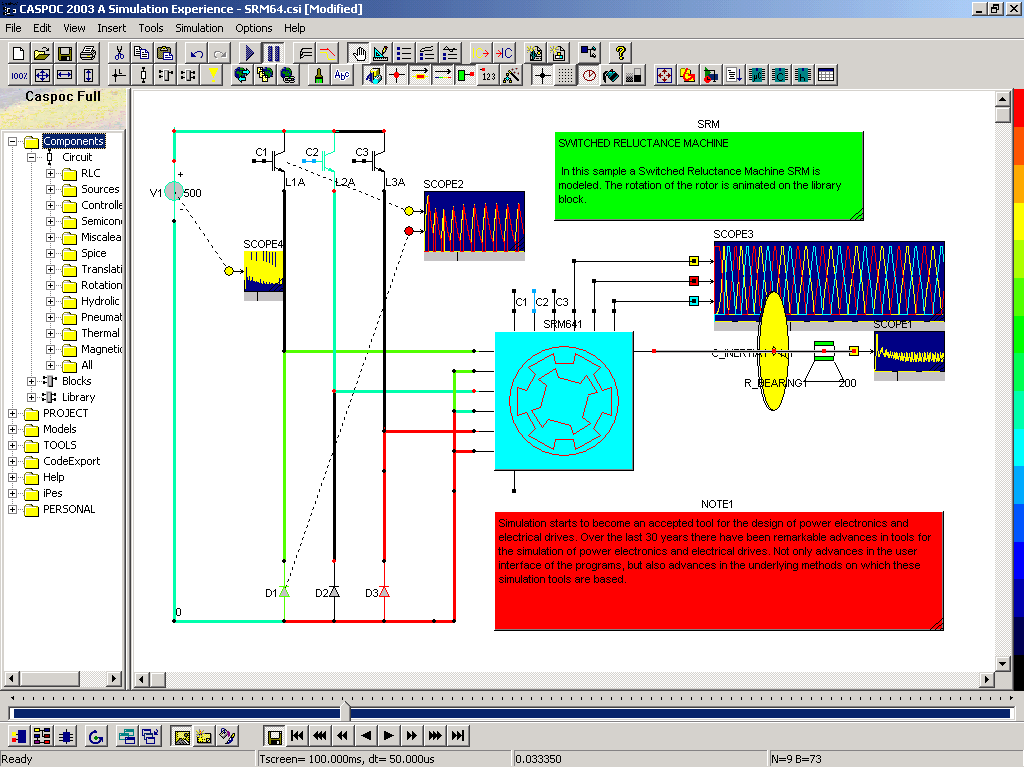

During replay also the animation of electrical machines and other animation components will be performed. For example, during the replay of the animation of a Switched Reluctance Machine drive, the rotor will show its position and the currents through the wires will be displyed.

<br>Click to close the image

Take care that he animation button is enabled during the replay, to see the animation.

<br>Click to close the image

During simuation when the simulation results are stored for the replay, the animation may be toggled off, in order to increase the simulation speed
