Line styles

For presentations or lecture, thicker lines are required for displaying the flow of currents or simulation results.
Using the zoom buttons you can resize the schematic to a desired format. Use the [+] and [-] keys from your numerical keypad to zoom-in or zoom-out. Use the [PgUp], [PgDn], [Home], [End], Ctrl+[+] and the Ctrl+[-] keys to scroll the schematic.

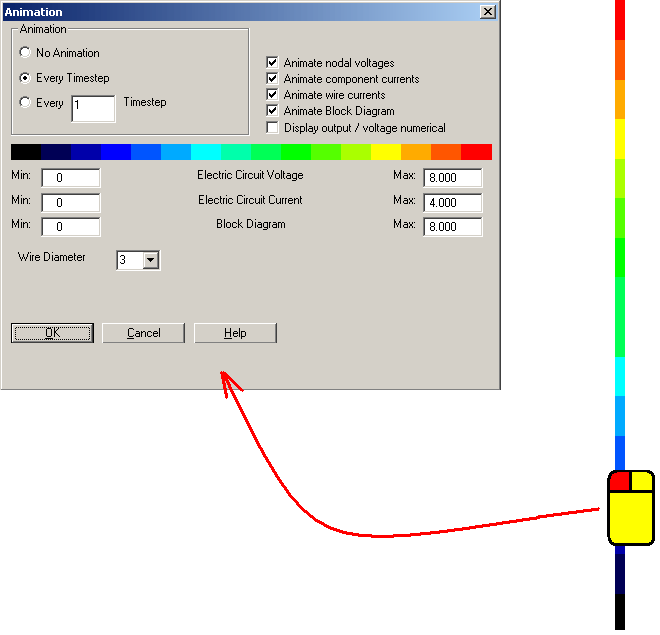

The thickness of wires in the schematic can be adjusted in the animation properties dialog box by double clicking the rainbow on the right side of the main window.

<br>Click to close the image

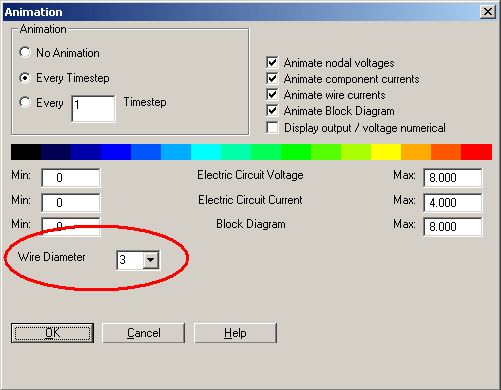

Select the size of wire in the animation properties dialog box.

<br>Click to close the image

Note:

The line style of wire is only effective duing the animation. If the animation is turned off, wires are shown using a width of 1 pixel.

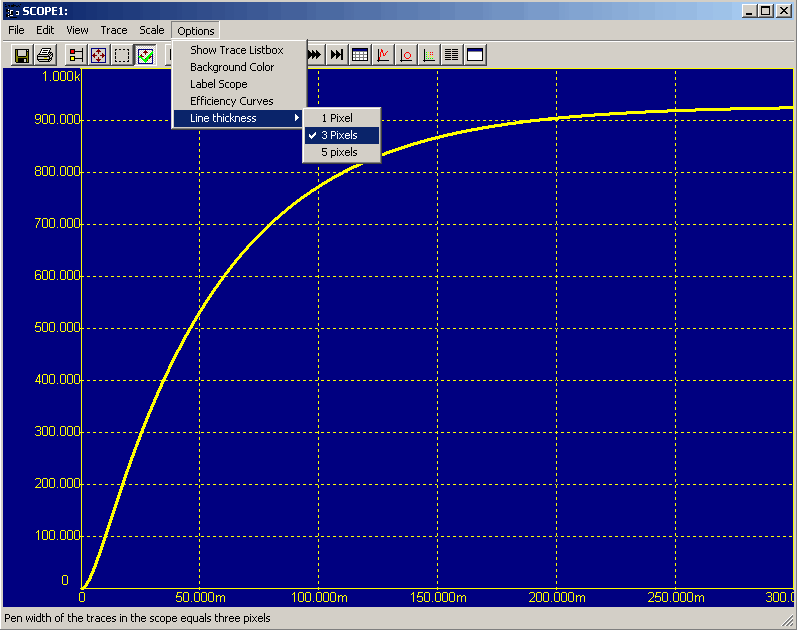

The results in the scope window can also be viewed with different line thickness. In the scope select a thicker line type from the menu Options/Line Thickness.

<br>Click to close the image

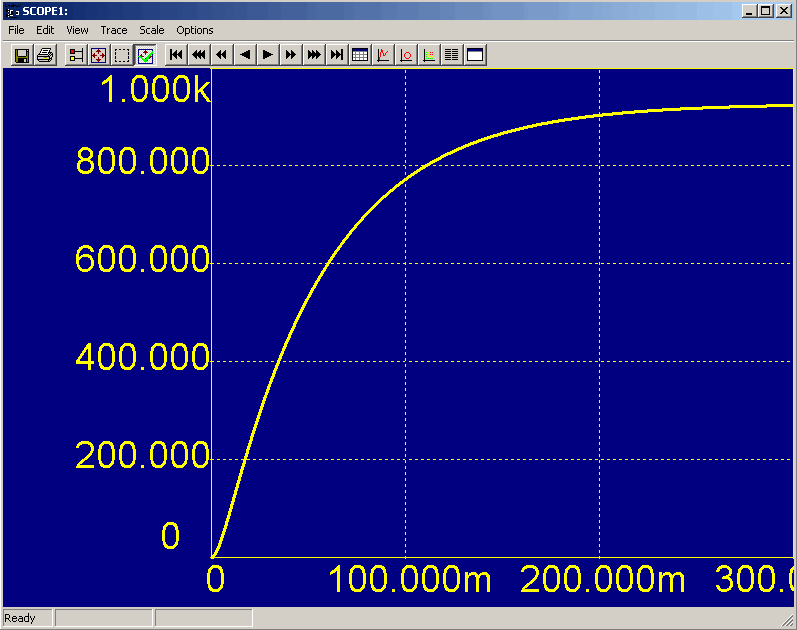

Also the font size can be changed in the scope. From the main menu in Caspoc select Options/Font

<br>Click to close the image

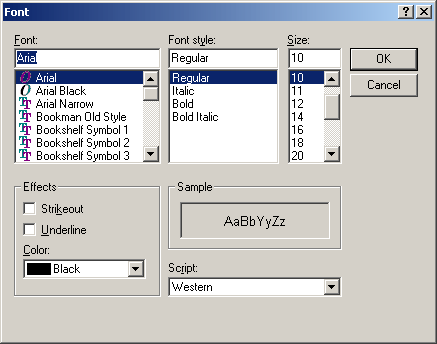

The font size is effective for both the characters in the schematic and in the scopes.

<br>Click to close the image
