Screen Length



Goal:

Define the length of one screen frame for viewing simulation results.

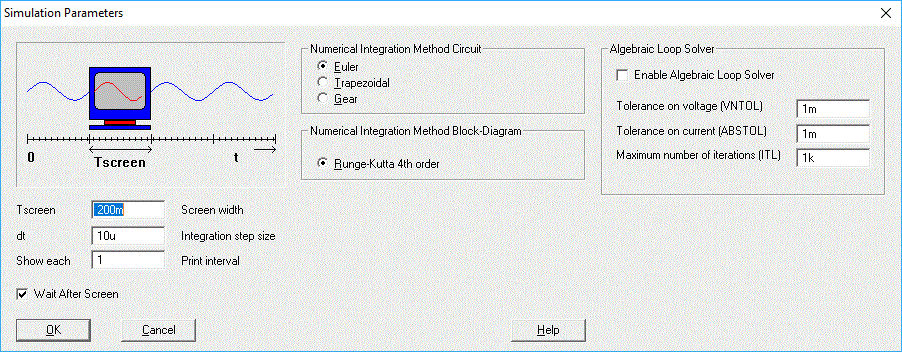

What to do: To define the length of one screen frame, select the dialog box Simulation/Simulation Parameters.
Each Tscreen seconds of simulation time, the screen is refreshed.
Example: A SMPS with a time response of 1ms is switching at 20kHz. To see 5 periods, set Tscreen to 250µs. Continue the simulation in CASPOC by pressing [Enter] or selecting Simulation/Continue Simulation, causing the simulator to simulate the next Tscreen seconds.A 3-phase rectifier operating at 50Hz. Tperiod equals 20ms. To see 5 periods, set Tscreen to 100ms. Continue the simulation in CASPOC by pressing [Enter] or selecting Simulation/Continue Simulation, causing the simulator to simulate the next Tscreen seconds.
Result: The results during simulation are shown in frames of Tscreen seconds.
