C-Script batch processing



Goal:

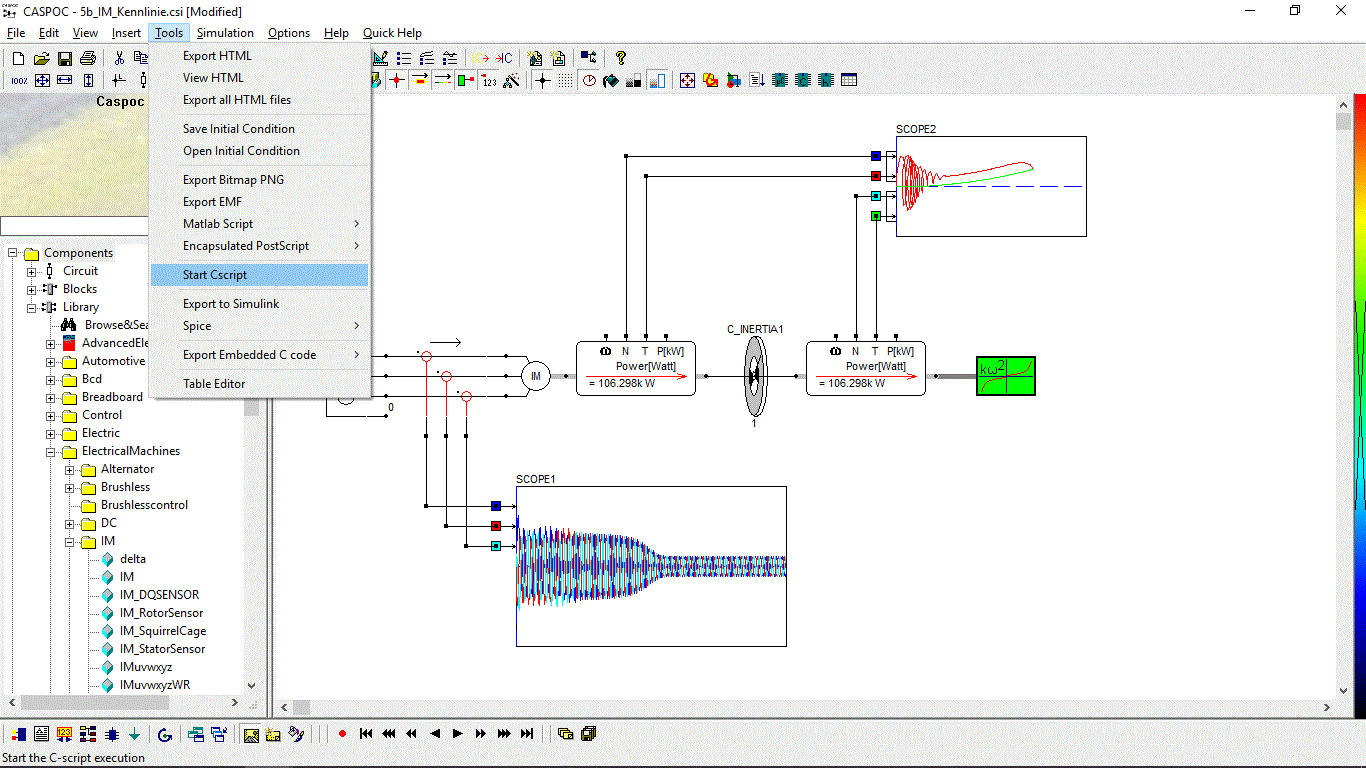

Start the C-Script to control the simulation.

What to do: In the C-Script file an ANSI C program can be defined which controls the simulation. The main() function in the C-Script is called. From the C-Script parameters and component values can be set and nodal voltages, currents and block-outputs can be read and used to control the simulation.
Use the *.cs extension for the C-Script files.
Result: The C-script will be excecuted and controls the simulation.

Note:

See the tutorial on C-Script programming for the syntax, and available library functions.
