Scale properties



Goal:

Define the scale settings.

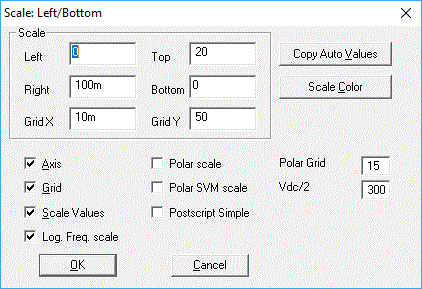

What to do: Select Scale/Edit Scale Left for the properties of the left and bottom scale, or Scale/Edit Scale Right for the properties of the right and upper scale.Double clicking, or with the right mouse button, on the scale values also opens the dialog box for the scale properties.You can copy the auto scale settings by selecting the button [Copy Auto Values].
Result: Change the value of the scale and grid.

Note:

The scale settings are only used if auto scaling is turned off.Turning auto scaling on does not disrupt the scale properties, only the viewing of the simulation results is scaled automatic.
