View the contents of a library block.



Goal:

Place the contents of a library block on top of the block.

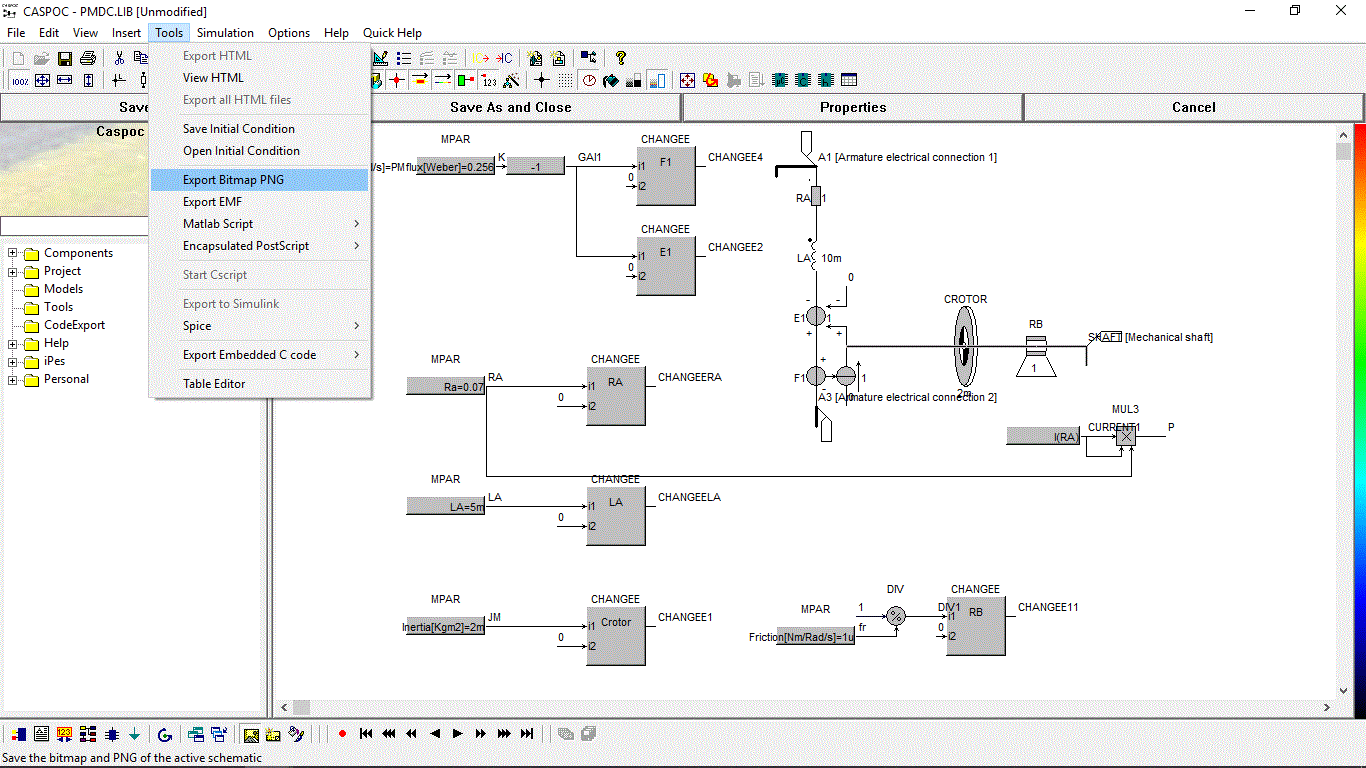

What to do: To view the contents of a library block in the block, mark the checkbox [x] EMF in the properties dialog box.Select the [Edit] button to open the library block and select Tools/Export EMF to export the EMF-file.
Result: The contents of the library block are stored in a (*.emf) file, which is displayed on the block.

Note:

The (*.emf) file should have the same file and pathname as the (*.lib) library file.
