Import a library block via the Windows Explorer



Goal:

Import library blocks using Drag & Drop.

What to do:

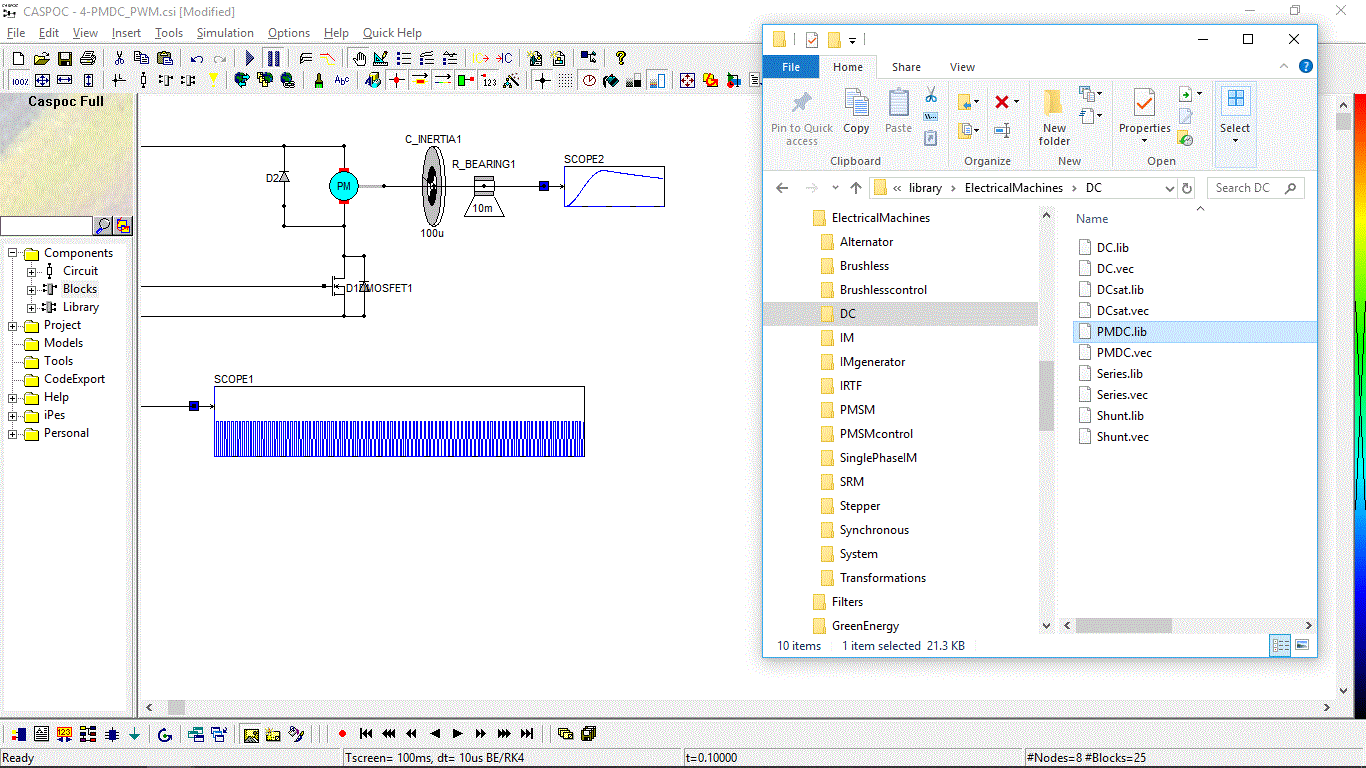

  1. Open the Windows Explorer and Caspoc. Resize both windows, so you have access to both applications.
  2. Select a library block (*.lib) in the Windows Explorer by clicking it with the left mouse button.
  3. While holding the left mouse button down, drag the library file (*.lib) over the schematic and drop it by releasing the left mouse button.
  4. Move the mouse to position the library block.
  5. Place the library block by clicking and releasing the left mouse button.
Result: Fast importing of library blocks.

Note:

The size and labels of the imported library block become visible after dropping the file on the schematic.
