Create a new library block



Goal:

Create a new library block from a selection in the schematic.

What to do: To export a set of components as one library block, select all the components whic hshould be exported into the library block.

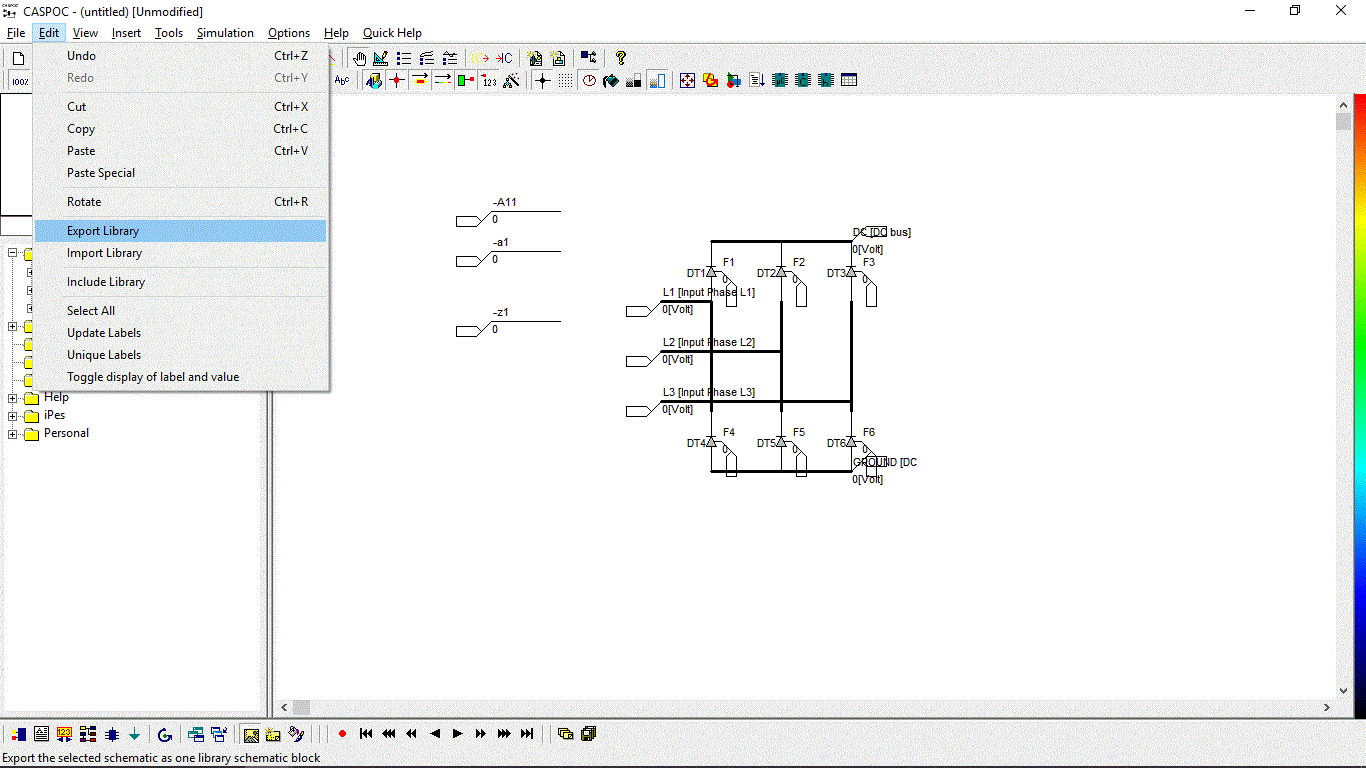

Select Tools/Export Library. Select per label to which direction the label should be exported and select [Export] to create th (*.lib) library file.
Result: The selected components are exported into one library block.

Note:

Nodes with equal labels are not connected internally asis the case in a (*.csi) schematic.
Do not save the exported selection with File/Save into a (*.lib) file, only use the [Export] button.
