Copy a library block.



Goal:

Copy and modify an existing library block

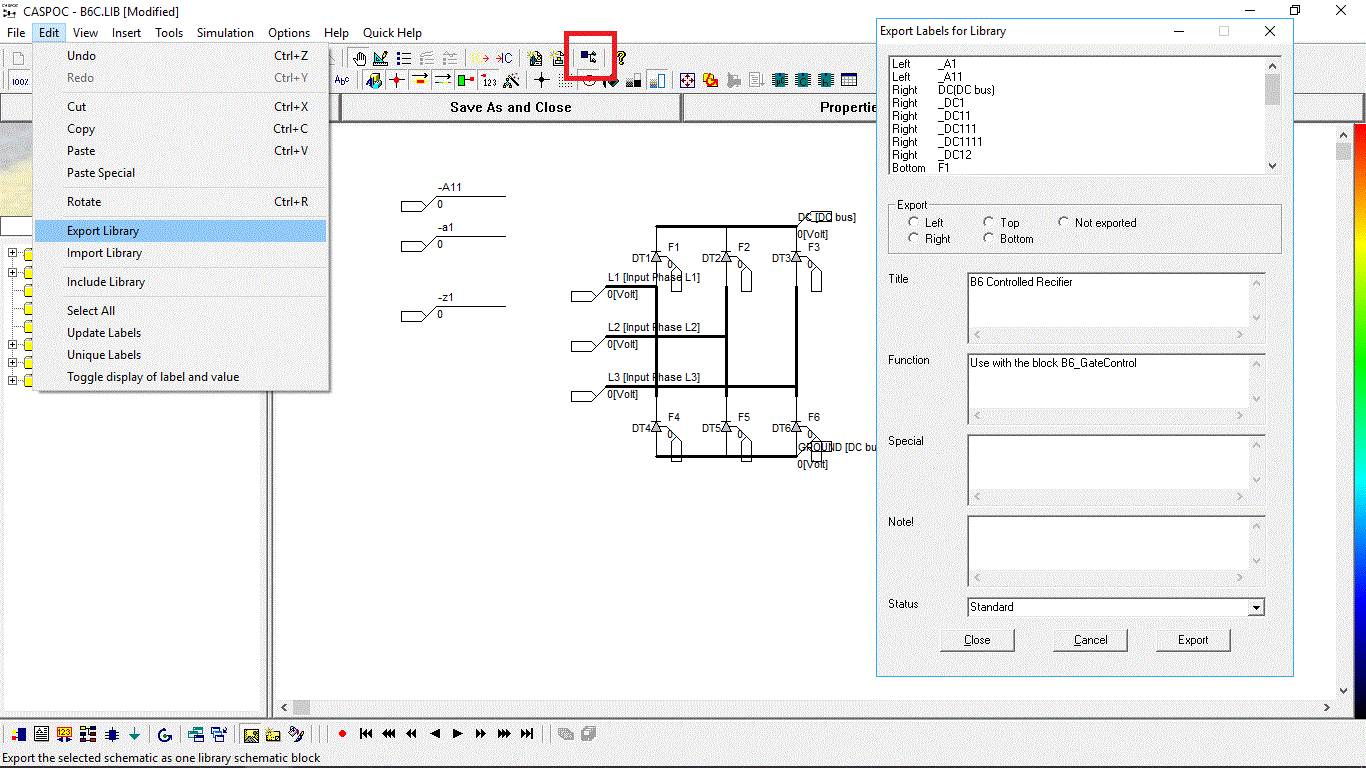

What to do: To create a new Library block which is based on an existing library block, select the original library block into the schematic and click it with the right mouse button. Select [Edit] and make the changes to the library block. Select Edit/Export Library to export the library block. In the Save As dialog box, type the new name of the library block. Close the Caspoc program where the library block was edited. To use the new library block, select it from the listbox on the right side or select Edit/Import Library to import the library block.
Result: The library block is copied and stored under another name.

Note:

Store the new library block in your own personal library directory which you can define in Options/Options dialog box at [Personal Libraries]
