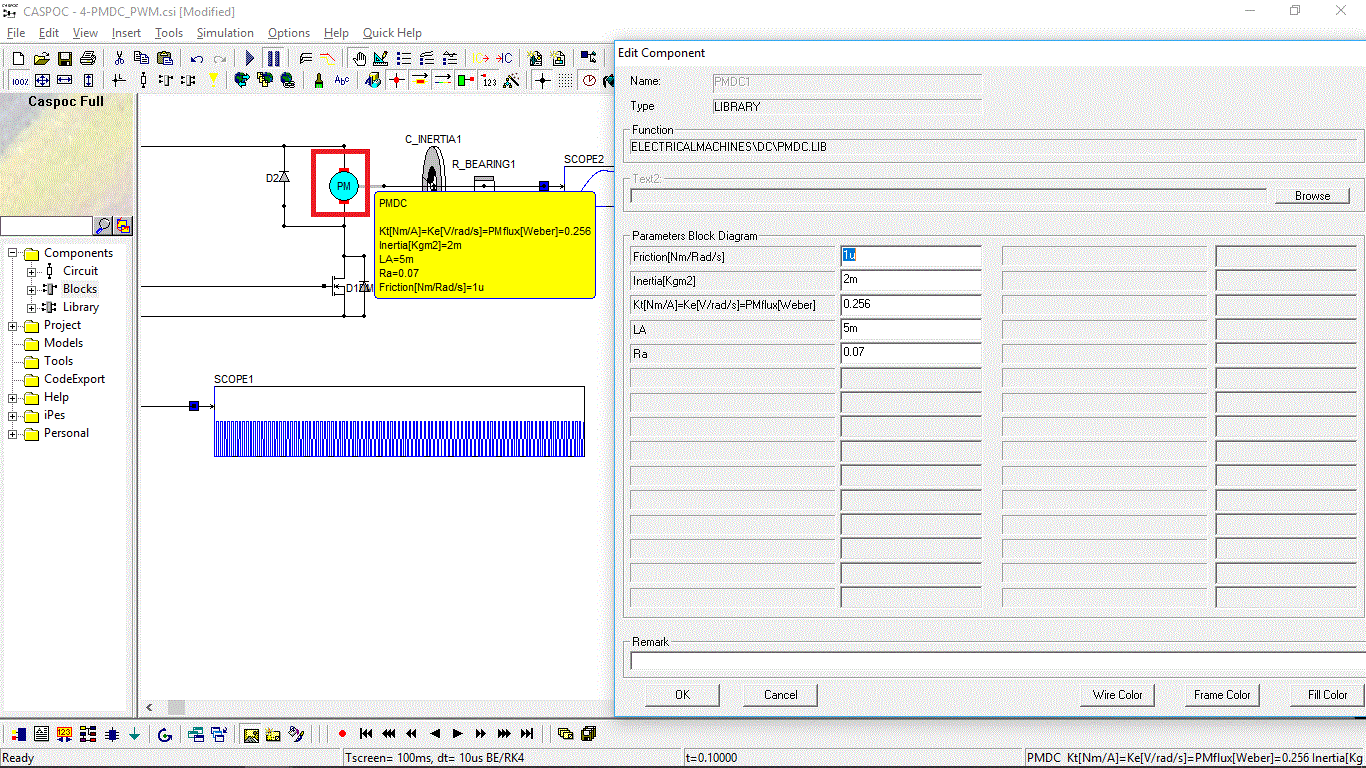

Library block properties



Goal:

Edit an existing library block.

What to do:
  • Selecting the button [Edit] opens the contents of the library file in the schematic editor.
  • Check the [] EMF to diplay a (*.EMF)-graphics file. You can export EMF-graphics files using [Tools/Export EMF]. The (*.emf) file should have the same name as the library file.
  • Check the [] Bitmap to diplay a (*.bmp) bitmap-graphics file. You can create Bitmaps using the Paint program in Windows. The (*.bmp) file should have the same name as the library file.
  • Check the [] Labels to diplay the exported labels inside the library block.
  • Select the [Picture] button to edit the bitmap in, for example, Paint.
  • Select the [Color] button to select the color of the library block.
Result: The library block is edited.

Note:

If the library block is edited by selecting the [Edit button], only that library block is re-imported. Always import the library block again, otherwise the changes made in the library block will have no effect.
