View the generated HTML report



Goal:

Start an HTML viewer for viewing the generated report from the simulation.

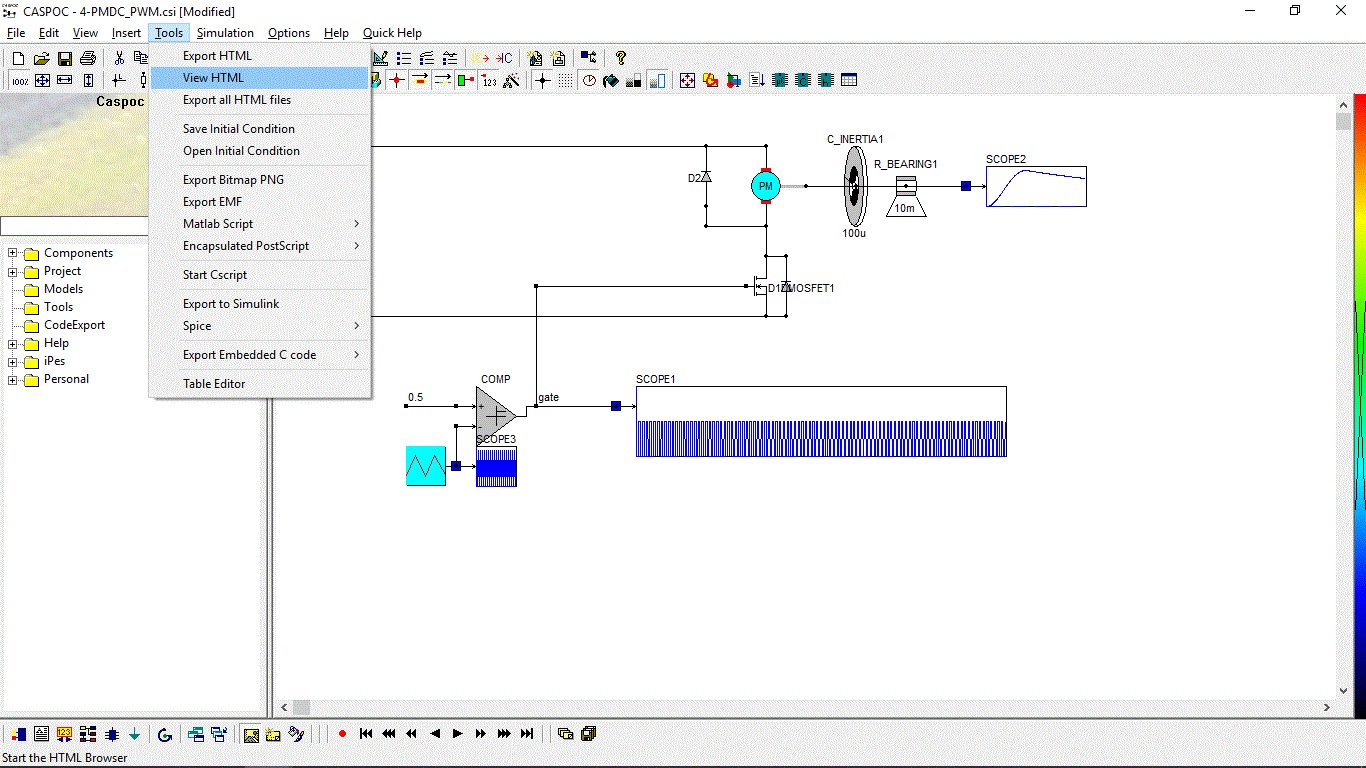

What to do: Select Tools/View HTML to open the HTML-viewer.
The generated report with the same file name as the schematic is loaded into the HTML-viewer.
Result: HTML-Report is opened in an HTML-viewer.

Note:

The default HTML-viewer can not display EMF-graphic files, which by default are generated in the report generator. You can view the report with the graphics in your default web-browser, for example, Internet Explorer, which is standard installed in Windows 98 and higher.
Select your web-browser as the default viewer in the dialog box Options/Options by selecting Standard HTML Viewer.
