Wind turbine AC and DC grid

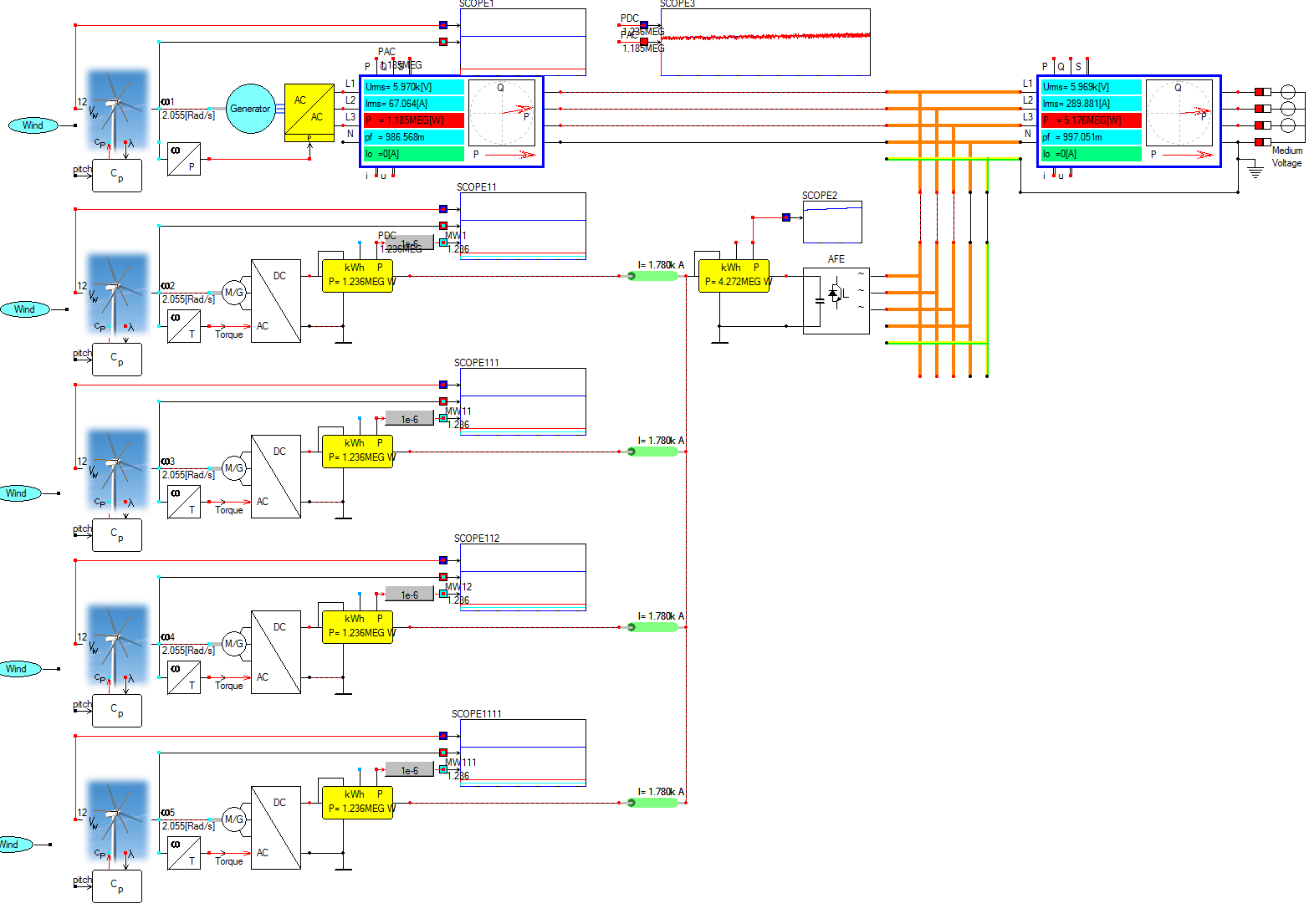

One wind turbine is connected to an AC grid, while the other wind turbines are connected to a DC grid.

The DC grid is connected to the MVAC grid via an Active Front End [AFE].
