Wind to DC grid

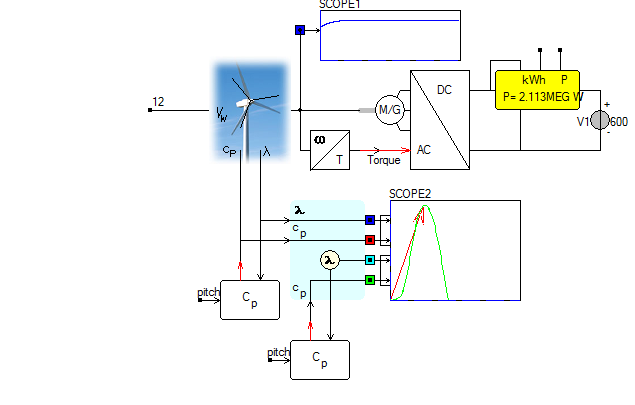

The wind power is delivered into a DC grid. The wind speed equals 12 m/s and the amount of power delivered is around 2MW.

At the bottom of the windturbine model are two Cp models.

One for the modeling of the wind turbine characterisitics, the second for displaying the characteristic CP curve in scope 2. The actual Cp value is displayed by the arrow in scope 2.

The maximum power is obtained via torque control of the generator.
