Gate Driver IR2111

Detailed simulation of electronics, Mosfets and integrated circuits using easy to understand models requiring a minimum of parameters.

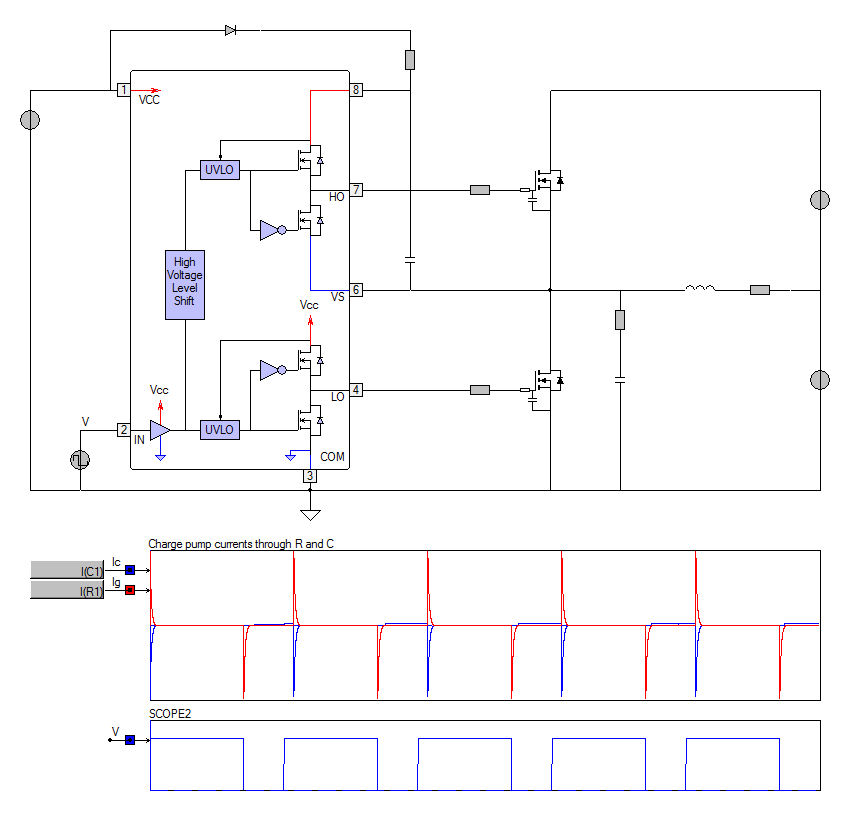

The Gate driver IR2111 model includes all details, such as the delay between turning on and off. Dimensioning of the charge pump external components R and C is based on the amount of gate charge and pulse width modulation and can easily be verified in simulation.
